Overview

Pelican™ Protector
The original case introduced over 45 years ago has since evolved into the global standard for equipment protection. The Protector Case series is designed to survive and trusted to travel to the harshest environments on earth. The Pelican 1510 Protector Case provides military-grade protection for a wide variety of gear, from camera equipment to camping kits. It is available with foam, without foam, padded dividers, or TrekPak dividers. The Pelican 1510 Protector Case is the maximum airline carry-on size, so you can travel with your sensitive gear close at hand. (Check with your airline for exact measurement requirements)
  • Maximum airline carry on size*
  • * Check with your airline for exact measurement requirements.
  • Watertight, crushproof, and dustproof
  • Strong polyurethane wheels with stainless steel bearings
  • Open cell core with solid wall design - strong, light weight
  • Retractable extension trolley handle
  • Easy open double-throw latches
  • Stainless steel hardware and padlock protectors
  • Automatic pressure equalization valve - balances interior pressure, keeps water out
  • Comfortable rubber over-molded top and side handles

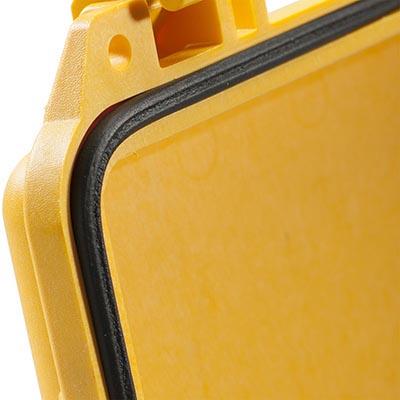

  • O-ring seal
  • Personalized nameplate service available
  • Lifetime Guarantee of Excellence

Details

Military-Grade Protection

Our Protector cases have been designed to meet rigorous US/NATO mil-spec certifications, including an IP67 rating.

Double Throw Latches

Ultra-reliable double-throw latches hold tight under extraordinary drops and impact.

Waterproof, Dustproof, Crushproof

Built to protect your gear against the harshest conditions

Accessories

pelican custom case foam yellow case
Design Your Own Foam

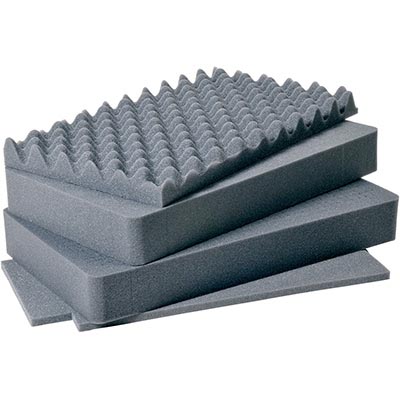

1511 Protector
1511 Protector
Case

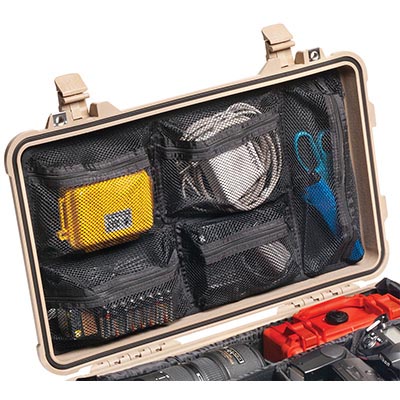

1519 Protector
1519 Protector
Case

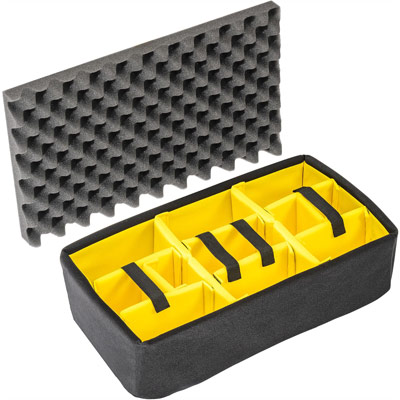

1515 Protector
1515 Protector
Case

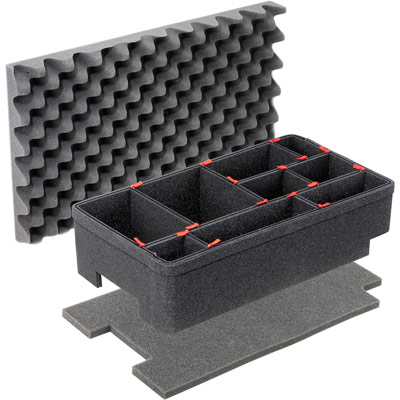

1510TPKIT Protector
1510TPKIT Protector
Case
1510TPDIV Protector
1510TPDIV Protector
Case

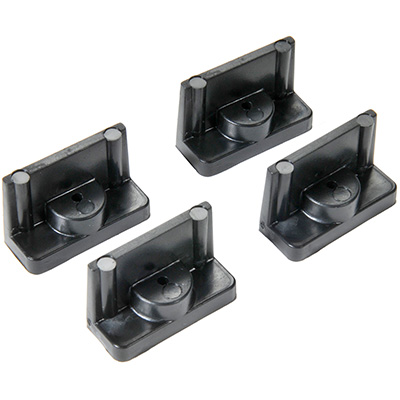

1507 Protector
1507 Protector
Case

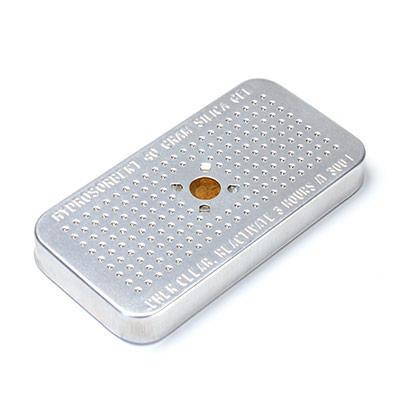

1500D Protector
1500D Protector
Case
1506TSA Protector
1506TSA Protector
Case
1513 Protector
1513 Protector
Case

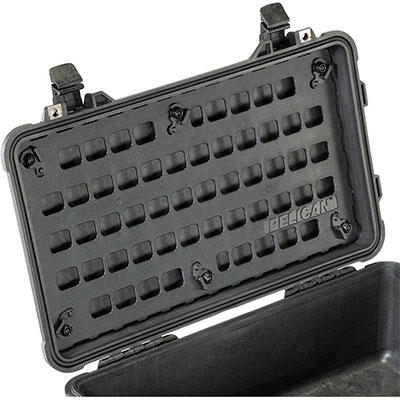

1510MP Protector
1510MP Protector
Case
1515 Protector
1515 Protector
Case
1507 Protector
1507 Protector
Case
1500D Protector
1500D Protector
Case
1506TSA Protector
1506TSA Protector
Case
1511 Protector
1511 Protector
Case
1519 Protector
1519 Protector
Case
1510TPKIT Protector
1510TPKIT Protector
Case
1510TPDIV Protector
1510TPDIV Protector
Case
1513 Protector
1513 Protector
Case

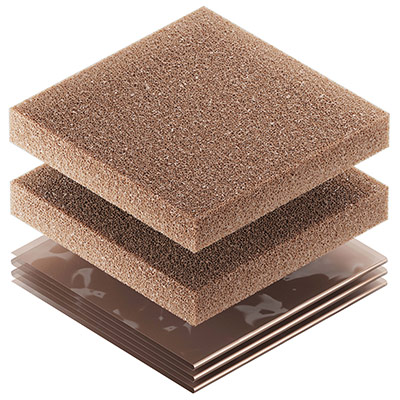

1500CI Protector
1500CI Protector
Case
1510MP Protector
1510MP Protector
Case

Measurements

Exterior

(LxWxD)


Inches: 22.00 x 13.81 x 9.00 in


Centimeters: 55.88 x 35.08 x 22.86 cm


Padlock Hole Diameter: 0.31"



Weight

With Foam: 13.60 lbs (6.17 kg)


Without Foam: 11.99 lbs (5.44 kg)


Interior

(LxWxD)


Inches: 19.75 x 11.00 x 7.60 in


Centimeters: 50.17 x 27.94 x 19.3 cm



Capacity

Volume: 47.35QT (44.81 liters)


Int Volume: 0.96 ft³ (0.03 m³)


Lid Depth: 1.79" (4.6cm)


Bottom Depth: 5.79" (14.7cm)


Total Depth: 9" (22.9cm)


Buoyancy: 64.15


Materials

Foam Material: 1.3 lb Polyurethane


Body Material: Polypropylene


Latch Material: ABS


O-Ring Material: Polymer


Pins Material: Stainless Steel


Purge Body Material: ABS



Temperatures

Min Temp: -40°F


Max Temp: 210°F


Warranty

Guarantee of Excellence
