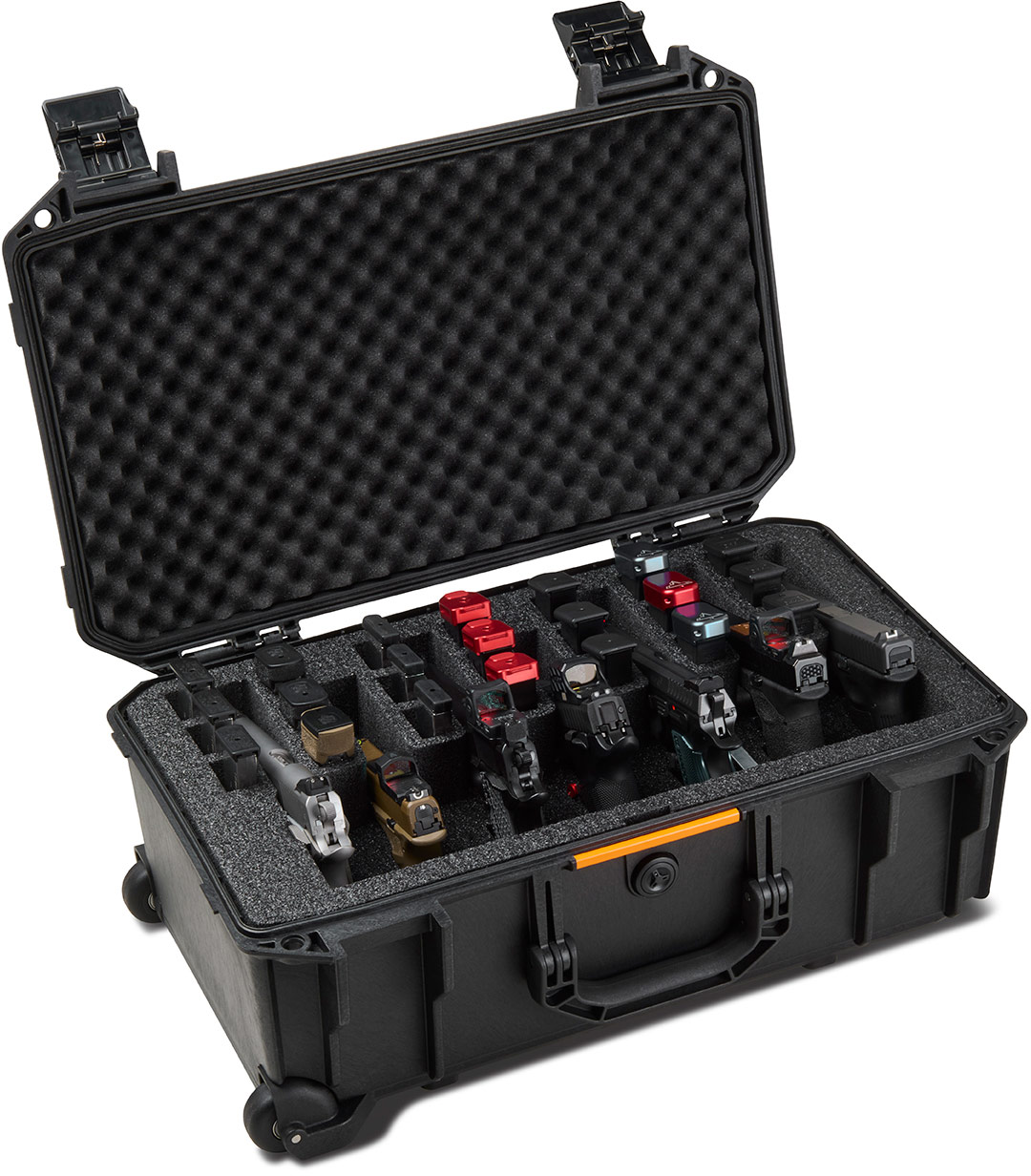

Vault cases are the most rugged and secure cases in their class. The Vault Universal Pistol Case features custom foam designed to fit up to seven full, compact, or sub-compact pistols. Wheels and a retractable extension trolley handle make this case easy to move. This Vault case offers the ultimate trust at a more affordable price. Transport your firearms with ease and confidence wherever the journey takes you.
  • CUSTOM FOAM: Pre-cut heavy-duty foam features customized storage for up to seven full, compact, or sub-compact pistols and magazines
  • RUGGED PROTECTION: Constructed of crushproof high-impact polymer with heavy-duty handles
  • WEATHER-RESISTANT: Cases are sealed against moisture and dust
  • AFFORDABLE: The most rugged and affordable durable case in its class
  • EASY-TO-USE: Two push-button latches offer secure closure with easy-open access
  • Ideal for up to 7 personal handguns
  • Made in the USA

Pelican Vault Cases

PEL Vault Crushproof

Crushproof High-Impact Polymer

Rugged construction helps keep your gear safe, no matter the conditions.

PEL Vault PBLatches

Push Button Latches

One-touch latch design for fast, secure access in the field.

PEL Vault HDHandles

Heavy Duty Handles

Reinforced for carrying weight under rugged conditions.

Measurements

Exterior

(LxWxD)


Inches: 22.00 x 14.00 x 9.00 in

Centimeters: 55.88 x 35.56 x 22.86 cm

Padlock Hole Diameter: 5/16"

Weights


Weight No Foam: 3.15 lbs (1.43 kg)

Interior


Inches: 19.90 x 10.60 x 7.30 in

Centimeters: 50.55 x 26.92 x 18.54 cm

Measurements


Int Volume: 0.89ft³ (0.03m³)

Lid Depth: 1.57"

Bottom Depth: 5.73"

Total Depth: 7.30"

Materials


Body Material: Polyethylene

Latch Material: ABS

O Ring Material: Polymer

Pins Material: Stainless Steel

Foam Material: 1.12 lbs. ELE (Polyurethane)

Purge Body Material: ABS

Purge Vent Material: 3 Micron Hydrophobic Non-Woven

Temperatures


Minimum Temperature: 0°F (-18°C)

Maximum Temperature: 140°F (60°C)
